1. The structure is lightweight and flexible, and the machine only weighs 920kg.
2. Electric vibration, electric steering, electric walking.
3. The 23 horsepower engine of Briggs&Stratton in the United States has sufficient power.

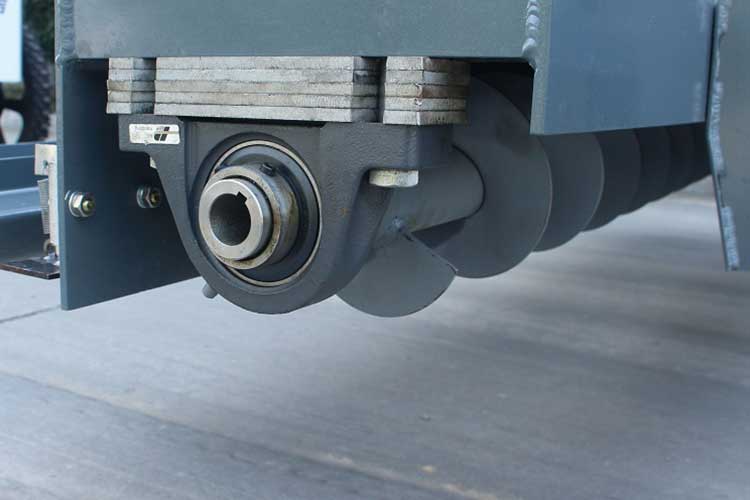

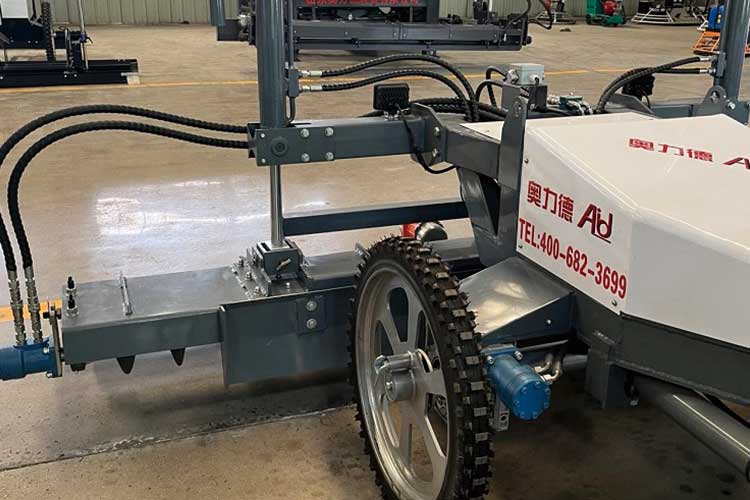

4. The machine comes with a feeding spiral, reducing the labor intensity of construction workers and improving construction quality.
5. The machine comes with a fine adjustment function, which effectively controls the accuracy of the concrete floor and improves the construction quality.
6. The main structural components are all imported with stable performance.

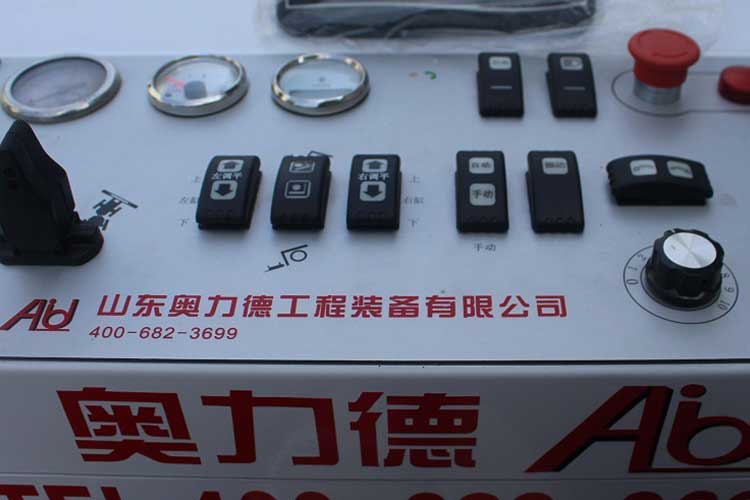

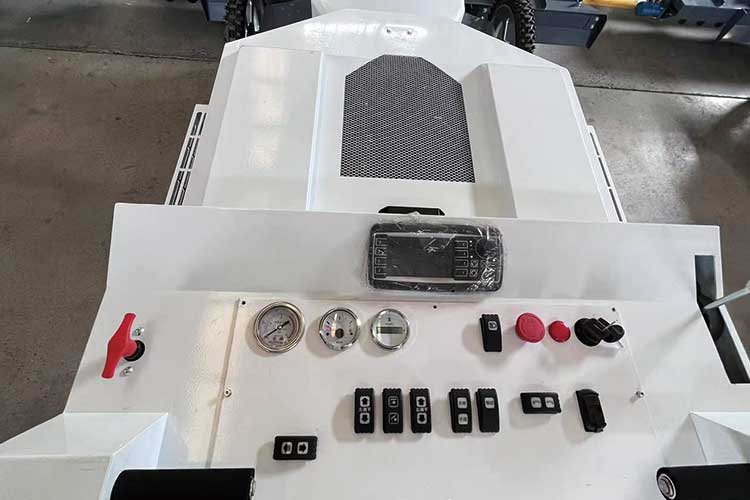

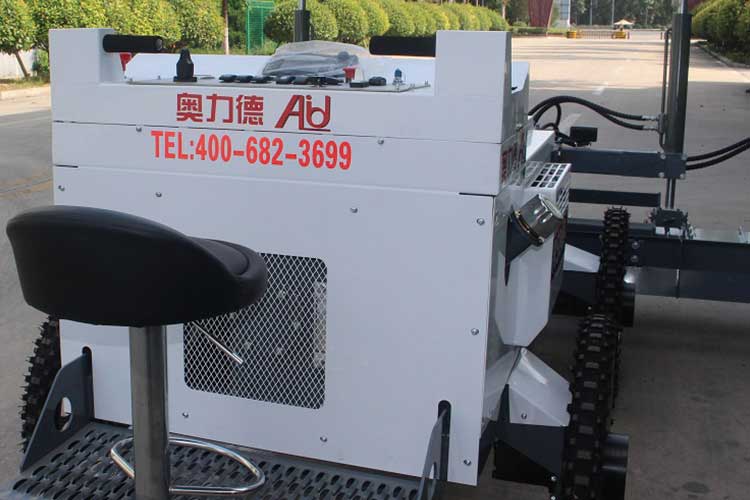

7. Intelligent operation panel, flexible operation, single person can operate the construction.
8. The laser transmitter is arranged independently to ensure consistent ground elevation and avoid errors.
9. The twisted cage between the vibrating plate and the scraper flips the excess concrete onto one side, reducing manpower and improving speed.

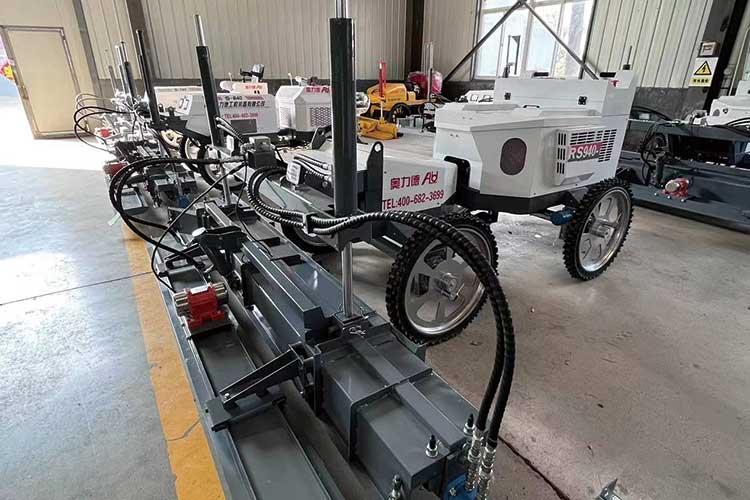

10. Integrated leveling head, integrating multiple processes together, improving work efficiency and saving labor.

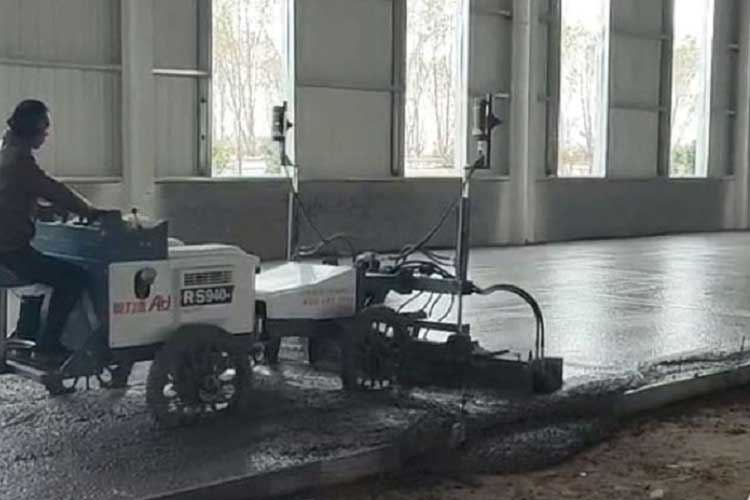

11. Over 400 square meters of construction area per hour, capable of completing over 3000 square meters of work per day, with high work efficiency
| Main technical parameters |
| engine |
|
Flatten width |
2.5m |
| Engine model |
Honda 690/BLT 3864 |
Leveling thickness |
3-30 cm |
| Engine power |
23 horsepower |
Paving method |
Mixing cage paving |
| firing |
Electric start |
Vibration frequency |
4500 times/minute |
| Fuel tank capacity |
92 # gasoline 17L |
Vibration force |
2000N |
| Fuel consumption rate |
1.2L-3L/h |
working efficiency |
300㎡-500㎡/h |
| Oil volume |
1.4L |
Laser control system |
|
| Replacement time |
≤100/h |

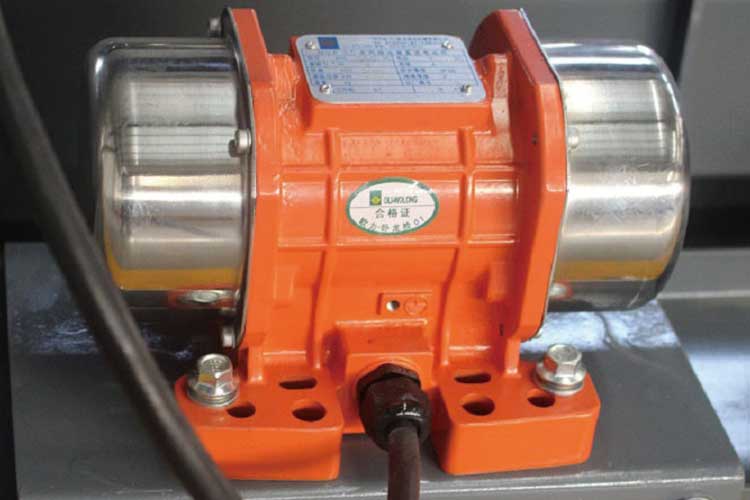

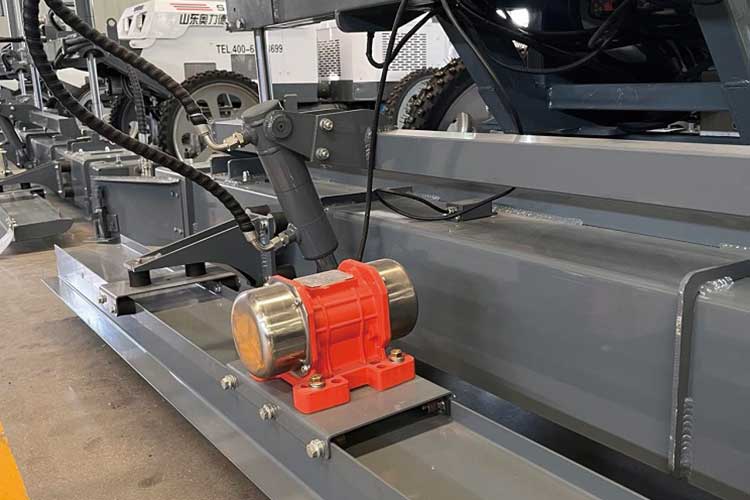

Vibration mode |
motor vibration |
| walking system |
|
control system |
Laser emitter |
| Walking mode |
Hydraulic four-wheel drive |
control effect |
Flat, sloping or double sloping |
| drive control |
Hydraulic drive |
tire |
|
| Walking speed |
3.3KM/h |
Track width |
910mm |
| Forward and backward |
Infinitely variable speed |
Ground clearance |
390mm |
| steer control |
electronic control |

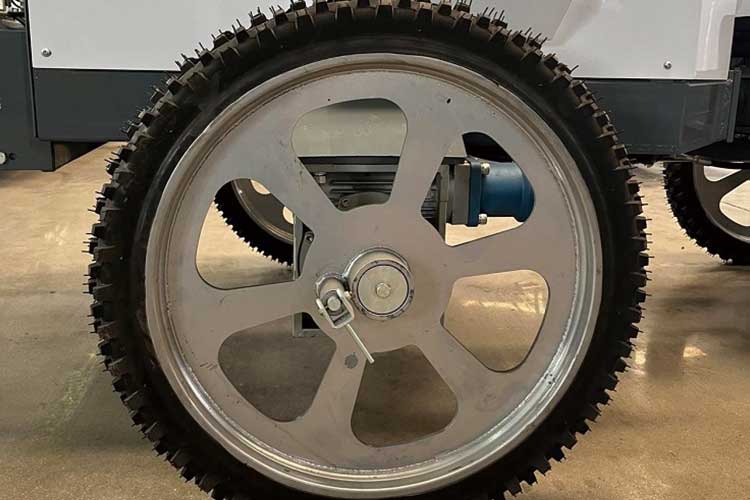

Tire type |
100/90-21 solid anti puncture tires |
| Hydraulic oil quantity |
30L |
net weight |
920Kg |
| |
|
size |
3380×2500×1280mm |
